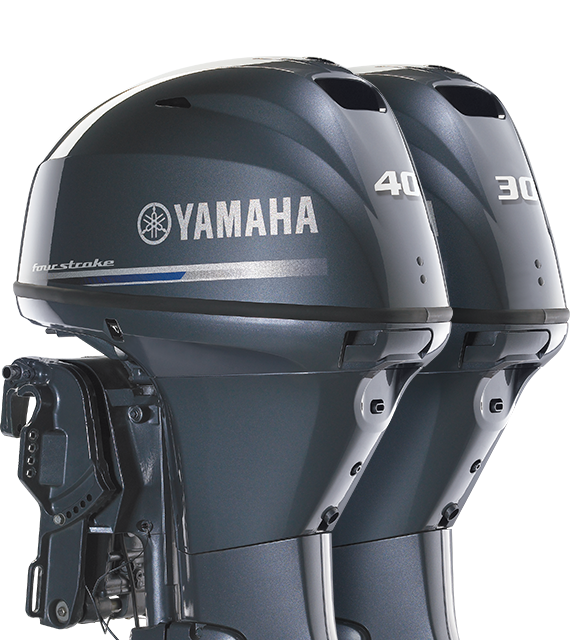

2025 Yamaha 30 - 40hp

Call For Price

Highlights


Warsaw, MO
Inquire for availability
New
2025
Yamaha
30 - 40hp
outboard engine
Midrange
power

RECENTLY VIEWED

info

30 HP

Our 747-cc 30-hp midrange boasts a streamlined design and solid performance. At just 214 pounds, it’s suitable for lightweight craft such as aluminum fishing boats and inflatables. Its Nitro Assist Tilt makes tilting almost effortless.

  • Available for mechanical or tiller-handle control
  • Only 214 pounds
  • Available in a 20” shaft
  • Powerful 17-amp alternator
  • Optional Variable Trolling RPM Switch (VTS®
Yamaha 30HP
Weight: 97 kg (214 lbs) - 101kg (223 lbs)
Full Throttle RPM Range: 5000 - 6000 RPM
Fuel Induction System: EFI
Recommended Engine Oil: Yamalube® 4M (See owner's manual)
Engine Type: 3 cyl
Displacement: 747cc
Bore x Stroke: 65 x 75mm (2.56 x 2.95 in)
Prop Shaft Horsepower: 30hp at 5500 RPM
Alternator Output at W.O.T: 17 Amp
Compression Ratio: 9.4:1
Recommended Fuel: Octane 87
Recommended Fuel Filtration: Yamaha 10-Micron Fuel / Water Separating Filter (external)
C.A.R.B. Rating: 2-Star
Exhaust: Through Propeller
Intake: 6
Ignition: CDI Microcomputer
Spark Plug: DPR6EB-9
Starting System: Electric
Lubrication: Wet Sump
Engine Oil Capacity: 1.7L/1.5L
Recommended Cooling: Thermostatic Control
Ethanol Blend Limit: 10% Maximum
Gear Ratio: 2.00:1
Gear Shift: Forward, Neutral, Reverse
Shaft Length: 20"
Degree of Tilt: 65° - 66°
Degree of Trim: -3° through +20°
Mounting Centers: N/A
Steering:
Steering Angle (maximum): 40° from center, either direction
Warranty: Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial

40 HP

Our 747-cc 40-hp midrange provides powerful performance in a compact package that’s available in both propeller and jet-pump driven models. With its single throttle valve, long-track intake manifold and electronic control module, it delivers easy starts, fast acceleration and excellent top-end speed.

  • Only 214 pounds
  • Available in a 20” shaft
  • Powerful 17-amp alternator
  • Optional Variable Trolling RPM Switch (VTS®
Yamaha 40HP
Weight: 97 kg (214 lbs) - 101kg (223 lbs)
Full Throttle RPM Range: 5000 - 6000 RPM
Fuel Induction System: EFI
Recommended Engine Oil: Yamalube® 4M (See owner's manual)
Engine Type: 3 cyl
Displacement: 747cc
Bore x Stroke: 65 x 75mm (2.56 x 2.95 in)
Prop Shaft Horsepower: 40hp at 5500 RPM
Alternator Output at W.O.T: 17 Amp
Compression Ratio: 9.4:1
